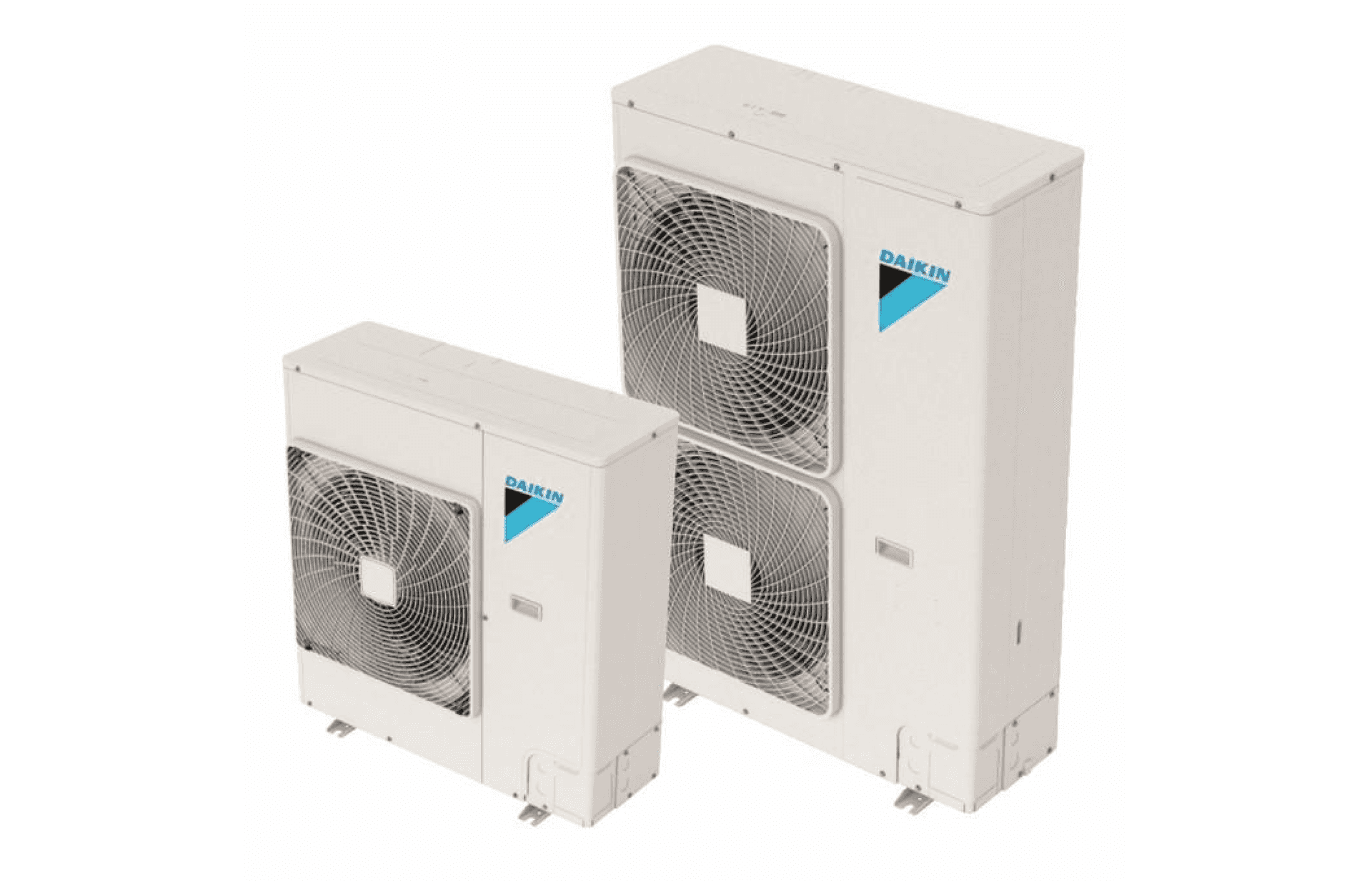

VRV-S Single Phase Heat Pump

Refrigerant: R-410A

***Warning: Transitioning to R-32***

Height: 39" (52-15/16" for 5 Ton unit)

Width: 37" (35-7/16" for 5 Ton unit)

Depth: 12-5/8"

Model Number	Nominal Size	Nominal Cooling (BTU/hr)	Nominal Heating (BTU/hr)	Cooling Efficiency (SEER2)	Heating Efficiency (HSPF2)	Airflow (CFM)	Net Weight (lb)
RXSQ24TB	2 Tons	24,000	27,000	23	9.6	2,682	172
RXTQ36TB	3 Tons	36,000	40,000	23	9.6	2,682	172
RXTQ48TB	4 Tons	48,000	52,000	20	9.5	2,682	176
RXTQ60TB	5 Tons	57,500	57,500	20.5	9.5	3,741	225

Nominal Cooling Capacities @ 95°F DB OAT; Nominal Heating Capacities @ 47°F DB Heating operation range -4°F to 60°F Cooling operation range 23°F to 122°F Low ambient cooling options. Estimated heating capacities at lower ambient temperatures do not include derates for piping, defrost operation or connection ratios. Always use Daikin WebXpress software to understand true system capacities including all de-rates. Condensing units to be elevated above local snow levels (normally 18" above mounting surface in cold climates)

Year round comfort and energy savings with Variable Refrigerant Temperature technology (VRT). Engineered with highly reliable Daikin Swing compressors. All inverter compressors to increase efficiency and avoid starting current rush. 10 years parts warranty.

		MCA (A) / MOP (A)
Availability	Voltage	2 Tons	3 Tons	4 Tons	5 Tons
	208 / 60 / 1	19.8 / 20	19.8 / 20	32.8 / 35	32.8 / 35
