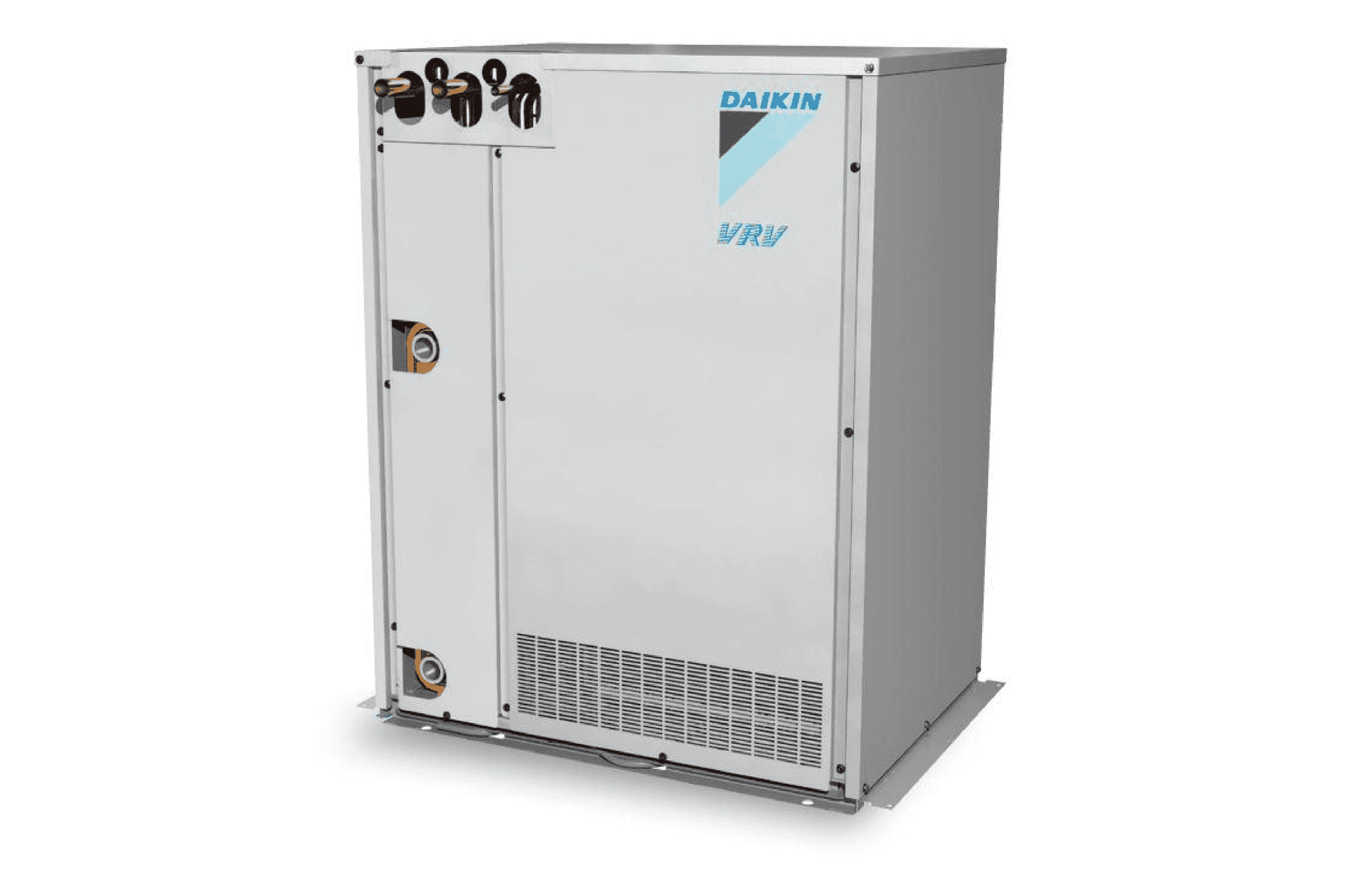

VRV Water Cooled Heat Pump & Heat Recovery

Refrigerant: R-410A

***Warning: Transitioning to R-32***

Height: 38-9/16"

Width: 30-1/8"

Depth: 22-1/16"

Model Number	Nominal Size	Nominal Cooling (BTU/hr)	Nominal Heating (BTU/hr)	Cooling Efficiency (non-ducted) (IEER)	Heating Efficiency (COP)	Waterflow (GPM)	Net Weight (lb)
RWEQ72T	6 Tons	72,000	81,000	19.4	5.5	16 - 39	434.3
RWEQ96T	8 Tons	96,000	108,000	19.5	5.43	16 - 39	434.3
RWEQ120T	10 Tons	119,000	135,000	19.4	5.38	16 - 39	438.7
RWEQ144T	12 Tons	144,000	162,000	19	5.2	16 - 39	438.7

Nominal Cooling Capacities @ 85°F EWT and 25.4 GPM; Nominal Heating Capacities @ 67°F EWT and 25.4 GPM Heating operation entering water range 14°F to 113°F (anti-freeze required with entering water below 50°F) Cooling operation entering water range 23°F to 113°F (anti-freeze required with entering water below 50°F) Always use Daikin WebXpress software to understand true system capacities including all de-rates. Field installed flow proving switch and pressure independent control valves required for each condensing unit.

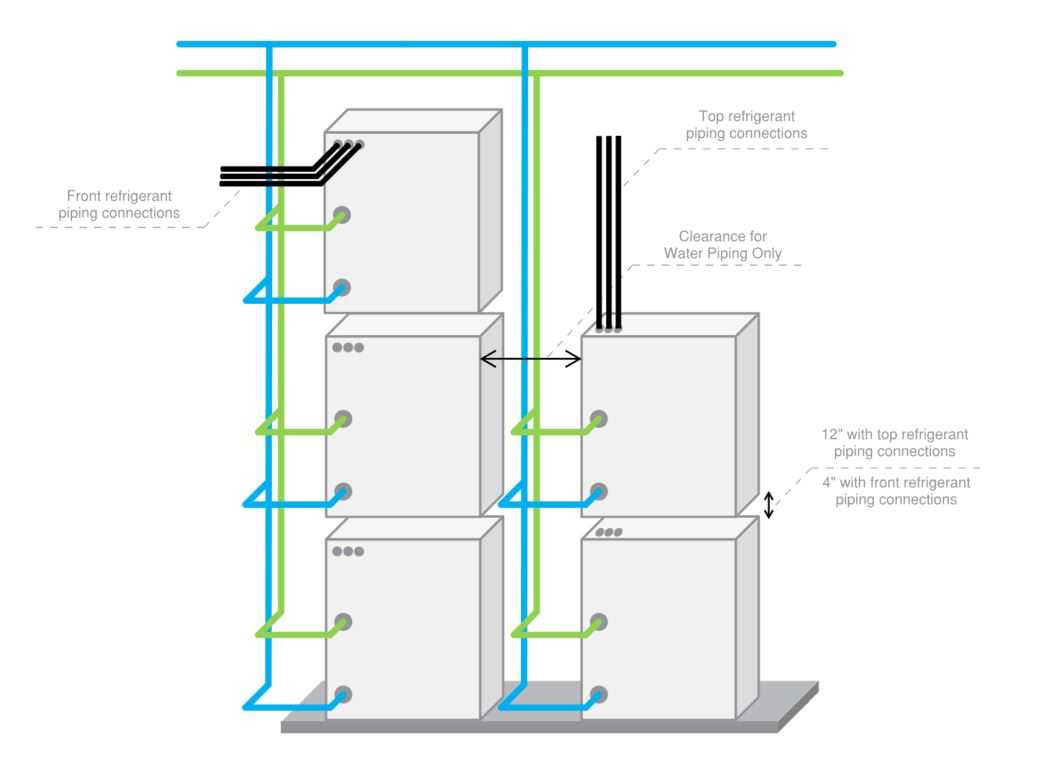

Year round comfort and energy savings with Variable Refrigerant Temperature technology (VRT). Can be installed in double or triple-stack style to maximize space saving. Engineered with heat rejection cancellation technology to eliminate heat addition to mechanical rooms. Variable water flow control as standard to increase the total system efficiency by reducing the water flow when possible. 10 years parts warranty.
