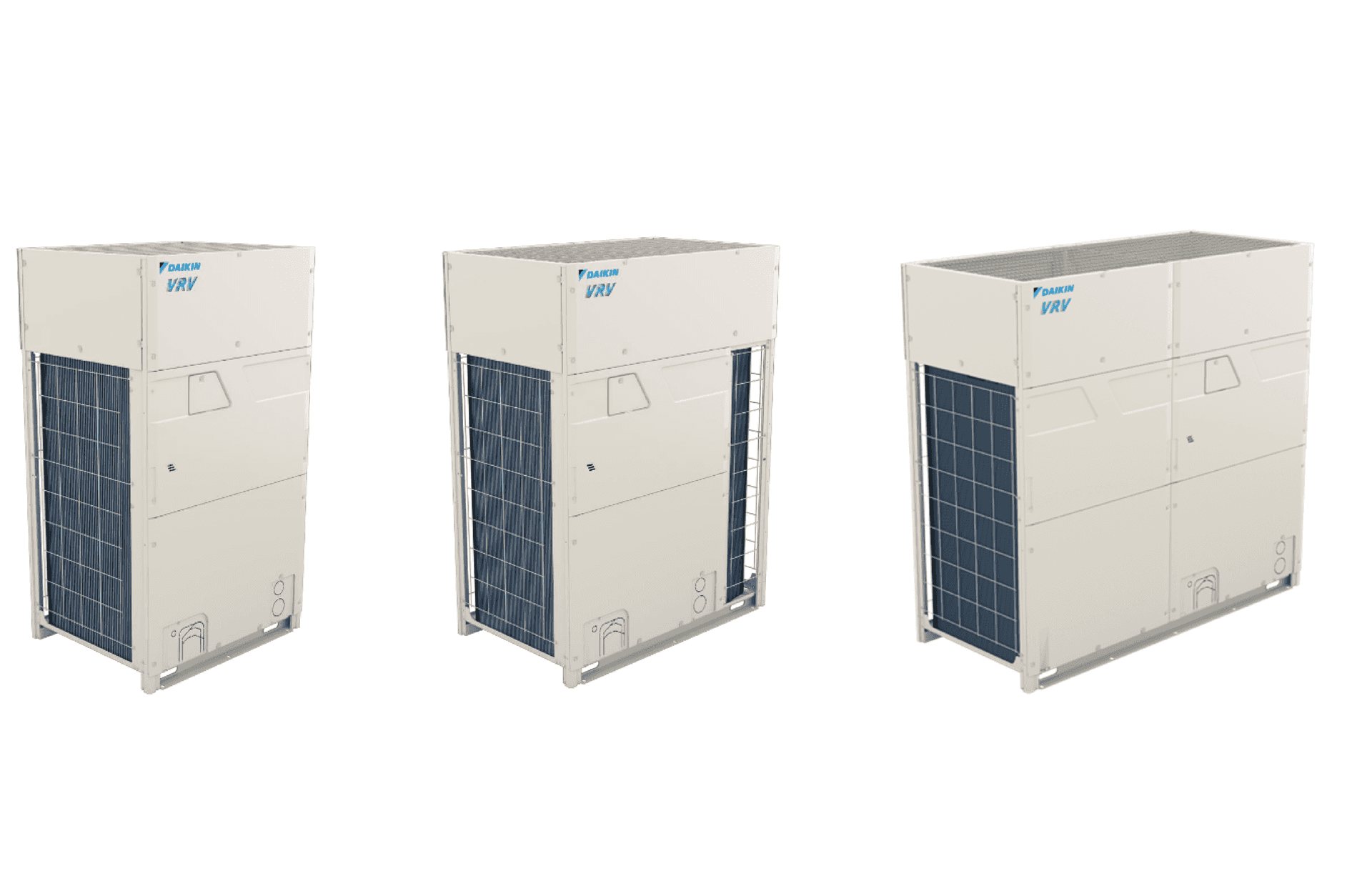

VRV Emerion Heat Recovery

Refrigerant: R-410A

***Warning: Transitioning to R-32***

Height: 65-3/8"

Width: 36-5/8" (6T) 48-13/16" (8-14T) 68-7/8" (16-20T)

Depth: 30-1/8"

Model Number	Nominal Size	Nominal Cooling (BTU/hr)	Nominal Heating (BTU/hr)	Estimated Heating 0°F & -13°F (BTU/hr)	Cooling Efficiency (non-ducted) (IEER)	Heating Efficiency (non-ducted) 47°F & 17°F (COP)	Airflow (CFM)	Net Weight (lb)
REYQ72A	6 Tons	72,000	81,000	60,968/ 44,179	21	3.80 / 2.30	6,200	509
REYQ96A	8 Tons	96,000	108,000	79,303 / 66,290	19.3	3.60 / 2.25	8,965	710
REYQ120A	10 Tons	119,000	135,000	84,604 / 71,126	18.6	3.50 / 2.25	8,965	712
REYQ144A	12 Tons	144,000	162,000	108,316 / 90,738	21.5	3.30 / 2.10	9,675	785
REYQ168A	14 Tons	162,000	189,000	108,188 / 88,770	20.4	3.30 / 2.05	9,675	787
REYQ192A	16 Tons	192,000	216,000	138,932 / 116,200	20.4	3.30 / 2.05	13,650	957
REYQ216A	18 Tons	216,000	243,000	142,648 / 119,582	19.2	3.30 / 2.05	14,505	957
REYQ240A	20 Tons	238,000	270,000	143,916 / 120,933	18.9	3.20 / 2.05	14,505	957

Nominal Cooling Capacities @ 95°F DB OAT; Nominal Heating Capacities @ 47°F DB Heating operation range -13°F to 60°F Cooling operation range 23°F to 122°F Simultaneous low ambient cooling to -4°F possible using Daikin's Technical Cooling feature. Contact your Daikin representative for requirements. Estimated heating capacities at lower ambient temperatures do not include derates for piping, defrost operation or connection ratios. Always use Daikin WebXpress software to understand true system capacities including all de-rates. Condensing units to be elevated above local snow levels (normally 18" above mounting surface in cold climates)

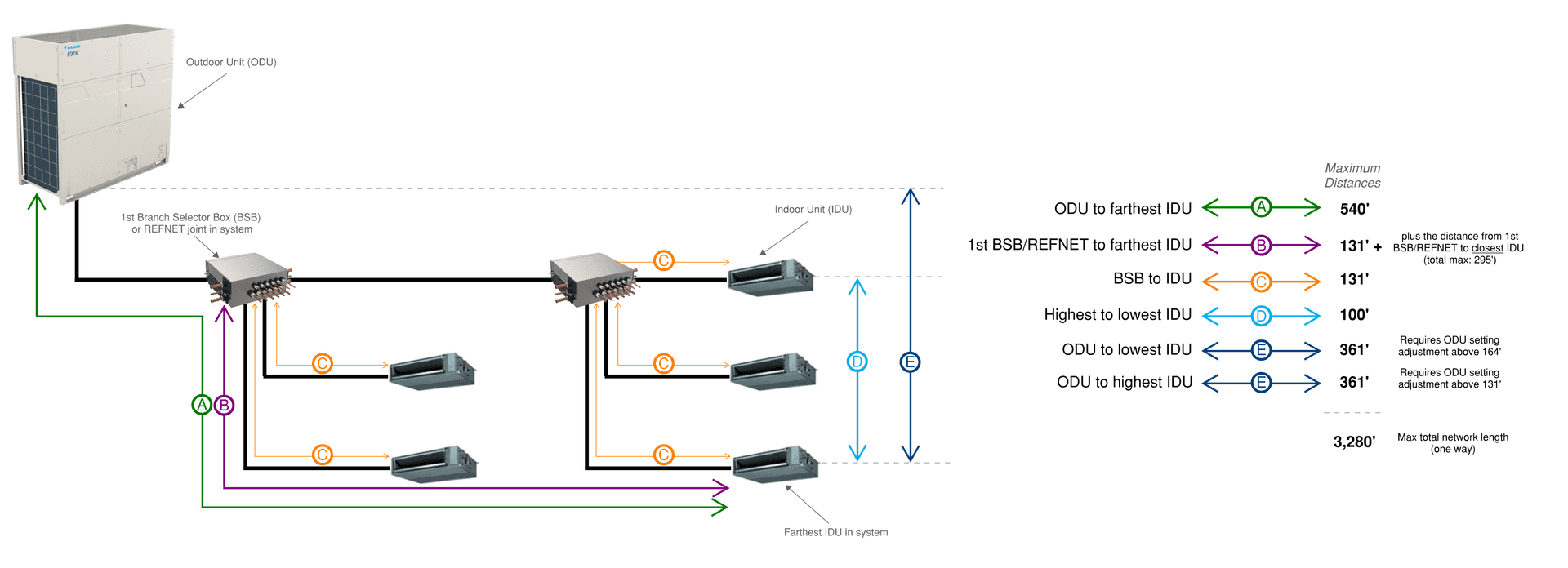

New generation, highest efficiency VRV platform with single module units from 6 - 20 Tons and dual-modules up to 40 Tons. Industry leading IEERs up to 30, tested at true comfort cooling conditions and as per AHRI (like all Daikin testing). Year-round comfort and energy savings with Daikin's Variable Refrigerant Temperature technology (VRT) Continuous heating during defrost capability with single module (16 - 20 Tons) and all dual module systems Hot gas refrigerant base pan circuit allows for installation without electric resistance base pan heater. New IP55 rated electrical compartment for highest PCB board protection against dust and moisture. Extended vertical piping capaibility with up to 361 feet between outdoor unit and indoor unit. Three-segment removable panel design and increased space for field piping connections, for industry leading serviceability. Design flexibility to enlarge system from single to a dual-module without changes to installed main pipe sizes for phased installation or tenant fit-out buildings. Built-in data recorder to store up to 45 minutes of operational data. 10 years parts warranty.
