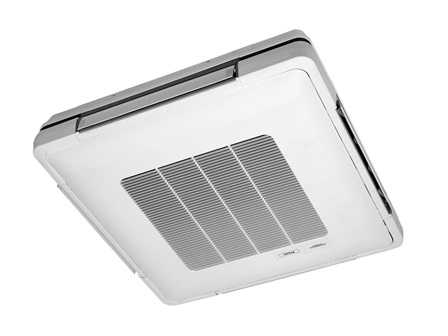

37" x 37" Exposed Cassette

18 to 36 MBH | Model: FXUQ_P

Refrigerant: R-410A

***Warning: Transitioning to R-32***

Model Number	Nominal Size (MBH)	CFM (High/Low)	Nominal Cooling (BTU/hr)	Nominal Heating (BTU/hr)	Dimensions (HxWxD)	Voltage	MCA (A)	MOP (A)
FXUQ18PAVJU	18	795 / 689 / 565	18,000	20,000		208/230V - 1ph	0.6	15
FXUQ24PAVJU	24	795 / 689 / 566	24,000	27,000		208/230V - 1ph	0.6	15
FXUQ30PAVJU	30	1,095 / 918 / 742	30,000	34,000		208/230V - 1ph	1.4	15
FXUQ36PAVJU	36	1,095 / 918 / 743	36,000	40,000		208/230V - 1ph	1.4	15

Notes

Nominal Cooling Capacities @ 80/67 °F DB/WB EAT: Nominal Heating Capacities @ 70°F DB EAT.
Recommended cooling operation range 57-77°F WB EAT and 80% RH or lower.
Recommended heating operation range 59-80°F DB EAT and 80% RH or lower.
Always use Daikin WebXpress software to understand true capacities at design conditions.

Features

Slim 8” tall cassette for exposed installation or partial 3" recess.
Optional sensor kit enables input from three room sensors to provide optimized occupant comfort and efficiency.
Sound pressure levels as low as 36 db(A).
Factory installed washable long-life filters.
Individual air louver control.
Integral condensate pump with up to 19-1/2'' lift.
10 year parts warranty.

Compatible Controls 2
R-32 undefined

Compatible Adaptors 3
R-32 undefined

Submittal Data Sheets

	208/230V - 1ph
18	FXUQ18PAVJU
24	FXUQ24PAVJU
30	FXUQ30PAVJU
36	FXUQ36PAVJU
