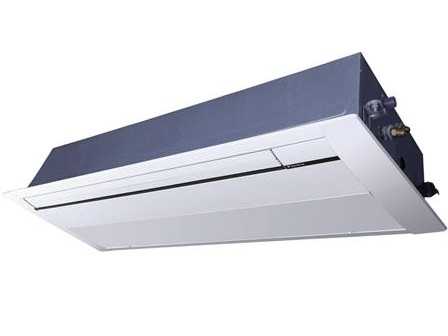

8" Tall One-way blow Cassette

7.5 to 24 MBH | Model: FXEQ_P

Refrigerant: R-410A

***Warning: Transitioning to R-32***

Model Number	Nominal Size (MBH)	CFM (High/Low)	Nominal Cooling (BTU/hr)	Nominal Heating (BTU/hr)	Dimensions (HxWxD)	Voltage	MCA (A)	MOP (A)
FXEQ07PVJU	7.5	212 / 180 / 148	7,500	8,500		208/230V - 1ph	0.3	15
FXEQ09PVJU	9.5	254 / 216 / 177	9,500	10,500		208/230V - 1ph	0.4	15
FXEQ12PVJU	12	304 / 261 / 212	12,000	13,500		208/230V - 1ph	0.4	15
FXEQ15PVJU	15	360 / 297 / 240	15,000	17,000		208/230V - 1ph	0.5	15
FXEQ18PVJU	18	495 / 410 / 346	18,000	20,000		208/230V - 1ph	0.5	15
FXEQ24PVJU	24	597 / 481 / 389	24,000	27,000		208/230V - 1ph	0.7	15

Notes

Nominal Cooling Capacities @ 80/67 °F DB/WB EAT: Nominal Heating Capacities @ 70°F DB EAT.
Recommended cooling operation range 57-77°F WB EAT and 80% RH or lower.
Recommended heating operation range 59-80°F DB EAT and 80% RH or lower.
Always use Daikin WebXpress software to understand true capacities at design conditions.
Requires separate decoration panel (available with self cleaning filter option).

Features

Compact design with 7-7/8'' height and 18'1/2'' width.
Horizontal and vertical louvers that can be freely adjusted with the remote controller.
Sound pressure levels as low as 26 db(A).
Factory installed washable long-life filters.
OA integration available for up to 15% of the airflow.
Integral condensate pump with up to 25'' lift.
10 year parts warranty.

Compatible Controls 2
R-32 undefined

Compatible Adaptors 3
R-32 undefined

Submittal Data Sheets

	208/230V - 1ph
7.5	FXEQ07PVJU
9.5	FXEQ09PVJU
12	FXEQ12PVJU
15	FXEQ15PVJU
18	FXEQ18PVJU
24	FXEQ24PVJU
