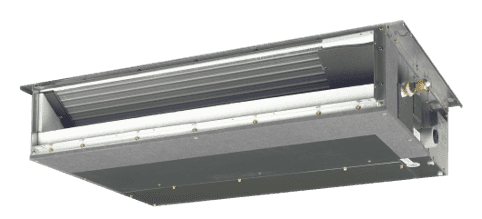

Horizontal 8'' Low Static

7.5 to 24 MBH | Model: FXDQ_M

Refrigerant: R-410A

***Warning: Transitioning to R-32***

Model Number	Nominal Size (MBH)	CFM (High/Low)	Nominal Cooling (BTU/hr)	Nominal Heating (BTU/hr)	Dimensions (HxWxD)	Voltage	MCA (A)	MOP (A)
FXDQ07MVJU	7.5	280 / 226	7,500	8,500		208/230V - 1ph	0.9	15
FXDQ09MVJU	9.5	280 / 226	9,500	10,500		208/230V - 1ph	0.9	15
FXDQ12MVJU	12	280 / 226	12,000	13,500		208/230V - 1ph	0.9	15
FXDQ18MVJU	18	440 / 350	18,000	20,000		208/230V - 1ph	1.3	15
FXDQ24MVJU	24	580 / 460	24,000	27,000		208/230V - 1ph	1.4	15

Notes

Nominal Cooling Capacities @ 80/67 °F DB/WB EAT: Nominal Heating Capacities @ 70°F DB EAT.
Recommended cooling operation range 57-77°F WB EAT and 80% RH or lower.
Recommended heating operation range 59-80°F DB EAT and 80% RH or lower.
Always use Daikin WebXpress software to understand true capacities at design conditions.
Low static unit not designed for long duct runs.

Features

Slim height of 7-7/8'' ideal for applications with low ceiling heights.
Designed for quiet operation, with sound levels as low as 29 dB(A).
Washable filter included.
Factory shipped for rear air inlet — field convertible to bottom air inlet.
Integral condensate pump with up to 23-5/8" lift.
10 year parts warranty.

Compatible Controls 2
R-32 undefined

Compatible Adaptors 3
R-32 undefined

Submittal Data Sheets

	208/230V - 1ph
7.5	FXDQ07MVJU
9.5	FXDQ09MVJU
12	FXDQ12MVJU
18	FXDQ18MVJU
24	FXDQ24MVJU
