SkyAir Cooling Only Wall Mounted

1.5-2 Tons  |  Model: RZR + FAQ_T

Refrigerant: R-410A

***Warning: Transitioned to R-32***

Model: RZR

Cooling Only
Max VerticalLength (ft)98' (18-24 MBH)Max Total Length (ft)164' (18-24 MBH)

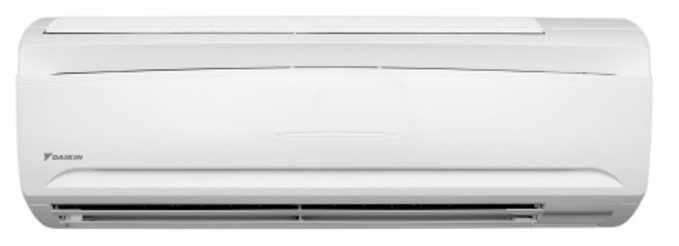

Model: FAQ_T

Wall Mounted

Dimensions (H x W x D)

18-24 MBH: 39'' x 37'' x 12-5/8''

Dimensions (H x W x D)

18-24 MBH: 11-3/8'' x 41-3/8'' x 9-1/4''

Piping
Model NumberNominal Size (MBH)Indoor Unit CFM (High/Low)Nominal Cooling @95°F (BTU/HR)Lineset SizeMax Total Length (ft)Max Vertical Length (ft)
FAQ18TAVJU + RZR18TBVJUA18500/40018,0003/8'' x 5/8''16498
FAQ24TAVJU + RZR24TBVJUA24635/47024,0003/8'' x 5/8''16498

  • Nominal Cooling Capacities @ 95°F DB OAT;
  • Cooling operation range 23°F to 122°F
  • Low ambient cooling to 0F available with wind baffle
  • Full low ambient cooling kits to -40°F available
  • Condensing units to be elevated above local snow levels (normally 18" above mounting surface in cold climates).

Outdoor Unit Features

  • Long pipe lengths with 98' vertical separation and 164' to 230' total length.
  • Low outdoor unit sound between 57-58 dB(A).
  • Year round comfort and energy savings with Variable Refrigerant Temperature technology (VRT).

Indoor Unit Features

  • Auto-swing mechanism for supply louvers.
  • Sound pressure levels as low as 31 db(A).
  • Factory installed washable long-life filters.
  • Options for gravity drained condensate or field installed condensate pump that fits within the unit cabinet.
  • 10 year parts warranty.

Electrical Information

MCA (A) / MOP (A)
TypeVoltage18 MBH24 MBH
Indoor unit208-230V/1ph0.5 / 150.6 / 15
Outdoor unit208-230V / 1ph16.5 / 2016.5 / 20

Submittal Data Sheets

18FAQ18TAVJU + RZR18TBVJUA
24FAQ24TAVJU + RZR24TBVJUA
