Heat Pump (Cold Climate)

1.5-4 Tons | Model: RZA + FTQ_T

Refrigerant: R-32

Model: RZA

Nominal Cooling Capacities @ 95°F DB OAT;
Heating operation range -4°F to 60°F (Extended heating down to -13°F)
Cooling operation range 23°F to 122°F
Estimated heating capacities at lower ambient temperatures do not include derates for defrost operation.
Condensing units to be elevated above local snow levels (normally 18" above mounting surface in cold climates).

SkyAir cold climate model with up to 100% heating capability down to 0°F.
Long pipe lengths with 98' vertical separation and 230' total length.
Low outdoor unit sound between 56-59 dB(A).
Year round comfort and energy savings with Variable Refrigerant Temperature technology (VRT).
New single chassis size across all RZA models.

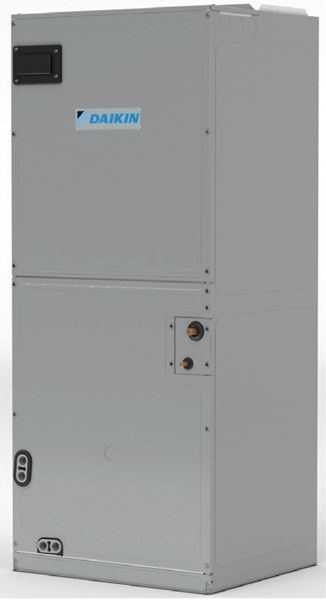

Full multi-position air handler capable of upflow, downflow, horizontal right, and horizontal left installation.
Designed for quiet operation, with sound levels as low as 36 dB(A).
High efficiency EC motors to deliver nominal CFM at up to 0.9” w.g. static.
Designed with less than 2% air leakage when tested in accordance with ASHRAE standard 193.
Optional electric heat accessories from 3kW to 25kW with single point power.
Easily integrate with third party accessories such as a humidifier or economizer with on-board contacts.
Options for gravity drained condensate or field installed pump.
10 year parts warranty.
