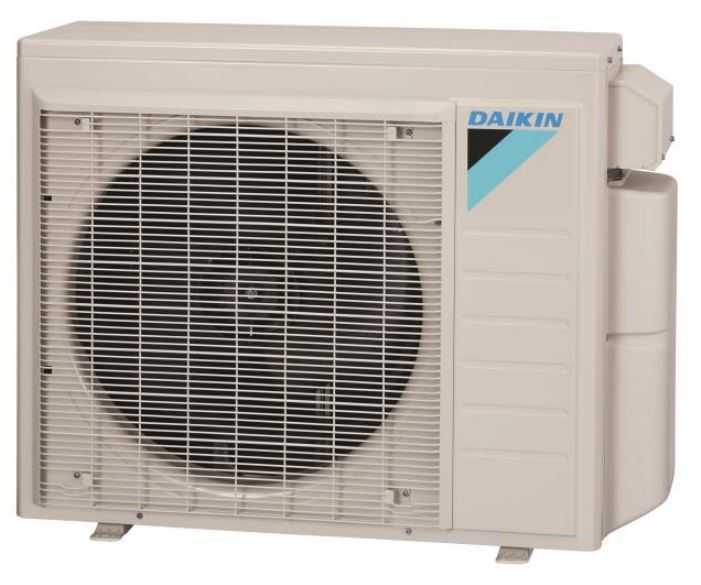

Cold Climate Heating (-13F)
1.5 to 3 Tons | Model: MXL
***Warning: Transitioning to R-32***
Model: MXL
| Heating Capacities (BTU/HR) | Piping | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

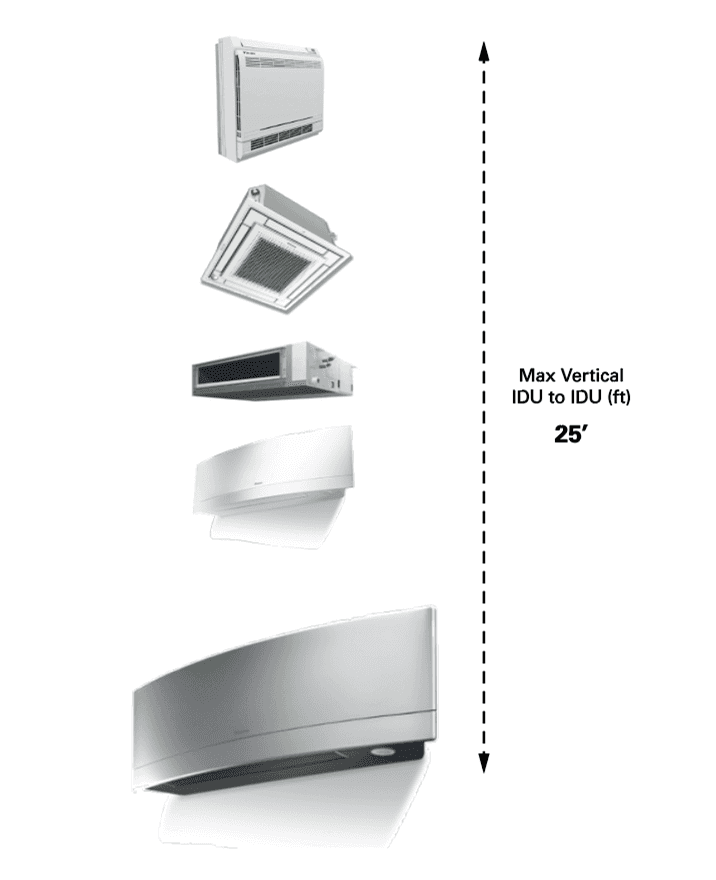

| Model Number | Nominal Size (MBH) | Number of Ports (max IDU count) | Nominal Cooling @95°F (BTU/HR) | 43°FWB | 5°FWB | Lineset Size | Max Total Length (ft) | Max Cumulative Length of All Runs (ft) | Max Vertical Length (ft) | Max Vertical Length IDU to IDU (ft) | Energy Star Certified |
| 2MXL18WMVJU9 | 18 | 2 | 18,000 | 18,900 | 18,930 | Various | 82 | 164 | 49 | 25 | Yes (with non-ducted IDUs) |
| 3MXL24WMVJU9 | 24 | 3 | 24,000 | 24,000 | 21,230 | Various | 82 | 230 | 49 | 25 | No |
| 4MXL36WVJU9 | 36 | 4 | 34,400 | 36,600 | 36,600 | Various | 98 | 230 | 49 | 25 | Yes (with non-ducted IDUs) |
Features
- Cold climate Aurora with confirmed operation to -13°F
- Anti-Corrosion Treatment on Heat Exchanger
Electrical Information
| MCA (A) / MOP (A) | ||||
|---|---|---|---|---|
| Type | Voltage | 18 MBH | 24 MBH | 36 MBH |
| Outdoor unit | 17.1 / 20 | 22.6 / 25 | 33.2 / 35 | |
