SKYAIRMINI-SPLITMULTI-SPLIT

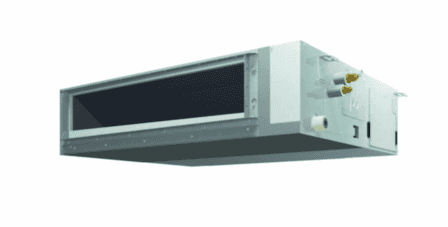

Horizontal 10'' Medium Static

0.75-2 Tons  |  Model: FDMQ_W

Refrigerant: R-410A

***Warning: Transitioning to R-32***
Horizontal 10'' Medium Static

Dimensions (H x W x D)

9-12 MBH: 9-5/8" × 27-9/16" × 31-1/2"
15-24 MBH: 9-5/8" × 39-3/8" × 31-1/2"

Piping
Model NumberNominal Size (MBH)Indoor Unit CFM (High/Medium/Low)Lineset Size
FDMQ09WVJU99343 / 290 / 2401/4" x 3/8"
FDMQ12WVJU912392 / 332 / 2751/4" x 3/8"
FDMQ15WVJU915516 / 438 / 3601/4" x 1/2"
FDMQ18WVJU918675 / 572 / 4731/4" x 1/2"
FDMQ24WVJU924798 / 678 / 5581/4" x 5/8"

  • For exact capacities contact Daikin Manufacturer's Rep.

Features

  • Factory mounted condensate lift pump (gravity drain also available on all units)
  • 3 selectable fan speeds and Auto
  • Auto restart after power failure (reinstates previous settings)

Other Considerations

  • Indoor units are supplied without filters. Work with manufacturer's rep for field supplied filter racks with MERV8 or MERV13 filters as required.
  • Indoor units receive power from outdoor unit.

Submittal Data Sheets

9FDMQ09WVJU9
12FDMQ12WVJU9
15FDMQ15WVJU9
18FDMQ18WVJU9
24FDMQ24WVJU9
