- BRC1E73

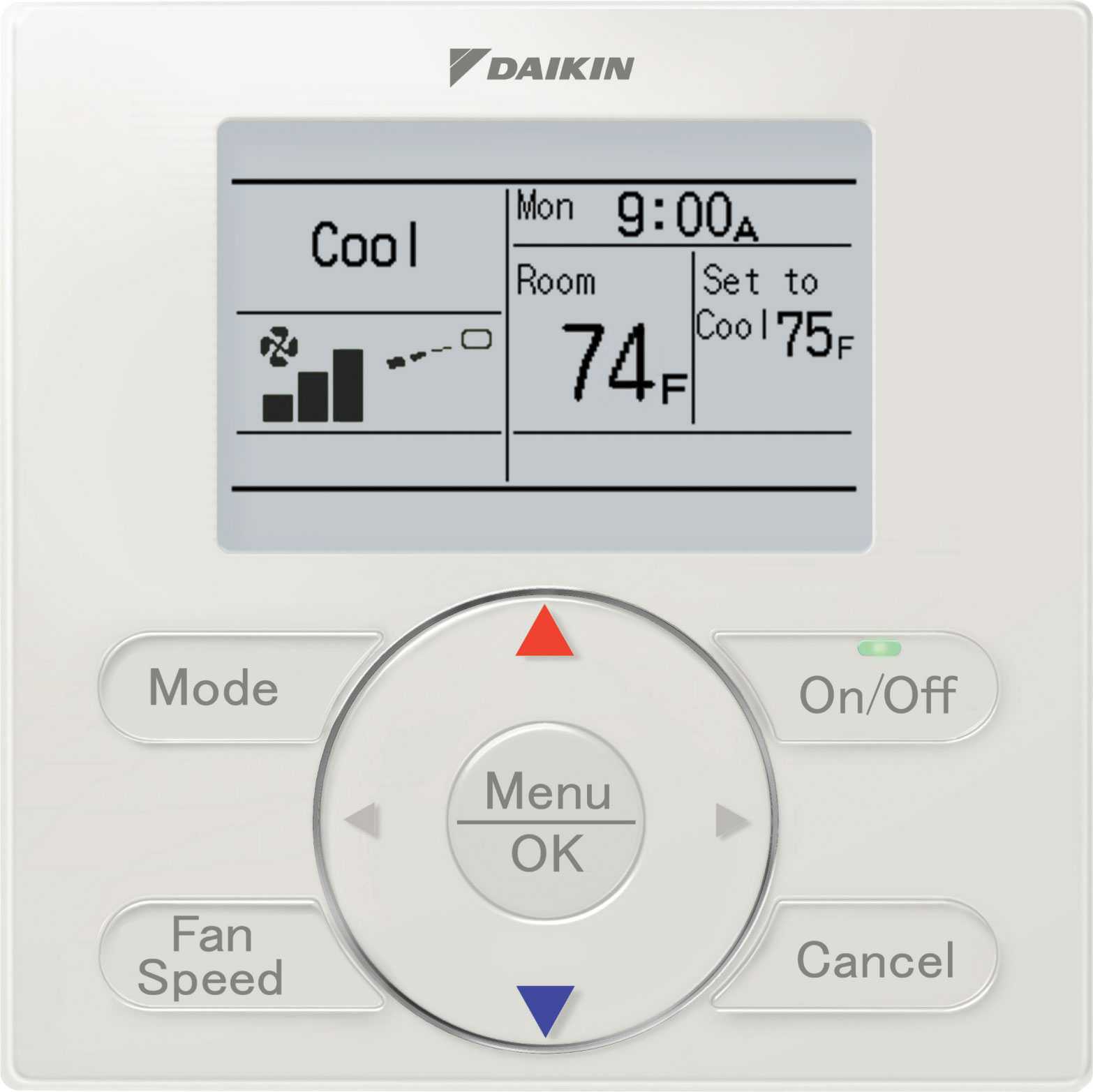

Navigation Controller
Model: BRC1E73
Refrigerant: R-410A
Features
- Powered by P1P2 connection of indoor unit
- Sensors: temperature
- Dual setpoints (independent cooling and heating setpoints)
- Setpoint range limit for cooling and heating modes
- Auto changeover control with configurable primary and secondary changeover dead bands and guard timer
- Built-in schedules (5 actions per day) with independent cooling, heating and setback setpoints
- Real-time monitoring of system malfunctions with immediate display of errors and error codes
- Unwanted buttons can be locked out digitally
- Operation modes can be restricted to provide only the desired mode(s) of operation
Additional Features

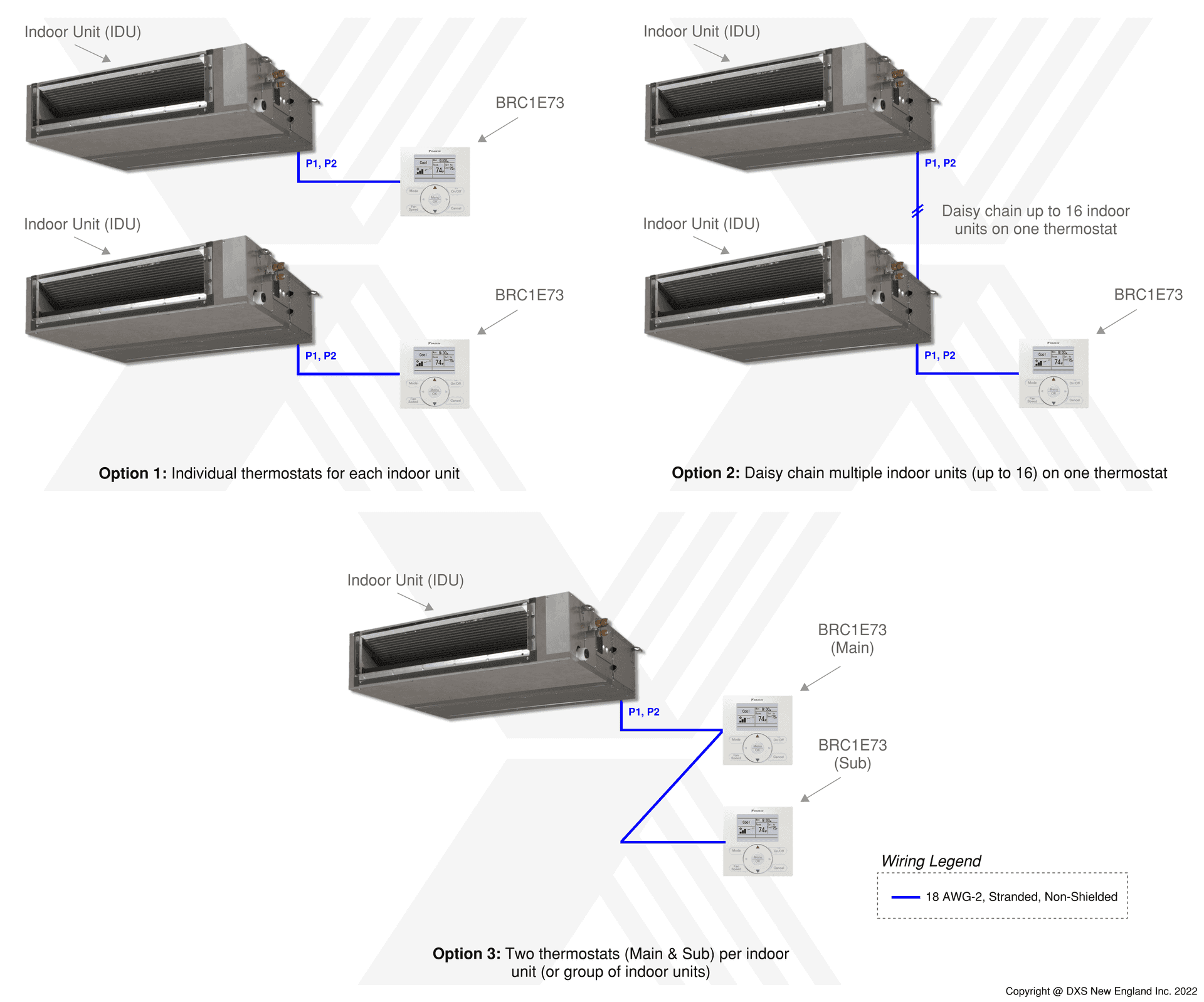

- Up to 16 indoor units are controllable with one thermostat
- Two thermostats can be used together as a main and a sub (temperature averaging unavailable)
- Backlit LCD display, available in English, Spanish or French
- Configurable display options: Detailed, Standard and Simple
- Fan speed selection and display can be hidden
- Display can be configured to show “Off” and room temperature only when indoor unit is turned off
- Temperature sensor built-in with configurable offset
- 48 hour clock/calendar battery backup (protects schedule in cases of short term power loss)
Features unique to specific indoor units
- [FXFQ_T, FXUQ_P, FXZQ_T, FCQ_T, FFQ_Q] Individual air flow direction, dual airflow and auto draft prevention (prevents air blowing directly on occupants)
- [FXFQ_T, FXUQ_P, FXZQ_T, FCQ_T, FFQ_Q] Automatic Setback or Off by occupancy sensor
- [FXFQ_T, FCQ_T] Configuration of the Self-cleaning panel
